Prerunner Kit - Aluminum | 14+ Chevy Silverado 2WD

BJK11104
* Images May Differ from the Actual Product *

12.5" of wheel travel; 2.5" wider per side; 0-4" of lift adjustable for the low Prerunner look and more stable handling - Shocks Sold Separately

** Billet Shock Plate is ONLY included with the Purchase of the Custom King 2.5 Coilovers **

Stamped Steel, Aluminum, and Forged Steel Control Arms
For the 2014-2016 Chevy Silverado and GMC Sierra 1500 trucks, GM offered three different upper control arms: stamped steel, aluminum, and forged steel. Additionally, in 2014-2016 GM truck had two different knuckles—aluminum and steel—each with different ball joint hole sizes.

Stamped steel and aluminum arms have a larger ball joint that fit the same knuckle. Steel knuckles with forged steel control arms had smaller ball joint holes that match the cast steel arms only. This is the same setup found on 2007-2014 models. Forged steel and forged aluminum arms have retention clips on the ball joint so if the ball joint cup becomes distorted, it does not fail.

New Stamped Steel Arm Design
The NEW stamped steel arms have a ball joint that is sandwiched between the upper and lower pieces of the arm with a relatively small surface area for ball joint retention with no supporting clips. If these cups distort, the ball joint fails and falls out.

GM 1500 trucks built after April 1, 2016 are stamped steel arms mated to smaller steel knuckles with the larger of the two ball joints. Basically, they are using the larger ball joint from the aluminum arm and putting it in a stamped arm and mating it to a smaller steel knuckle.
Availability: Front
Shipping: Shipping Pricing for Hawaii and Alaska Please Call
Pricing: $2,999.00

Customize Your Item

Select Shock Option
Qty:

Description


Description

Baja Kits Prerunner Suspension Kit excels in the dirt while retaining excellent on-road handling and comfort. The kit is a direct bolt-on to your 2WD Chevy Silverado. Engineered to be a complete mid travel suspension system, it uses Trophy Truck grade uniballs and hardware on both the Upper and Lower arms. Heavy duty fabricated steel arms handle the abuse while custom tuned King coilover shocks with remote reservoirs and compression adjusters for precise tuning handle suspension damping. (Rear kits available too).


The Baja Kits Advantage:
- CAD designed boxed UCA
- Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durabilty and a quiet, no squeak ride
- 1" Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
- Easy Install, NO welding, able to be put back to stock

Technical Specs:

Track Width 2.5" wider per side (5" wider total)
Wheel Travel 11" when used with our Custom King Shock
Lift - 3 - 4"

Product Requirements:

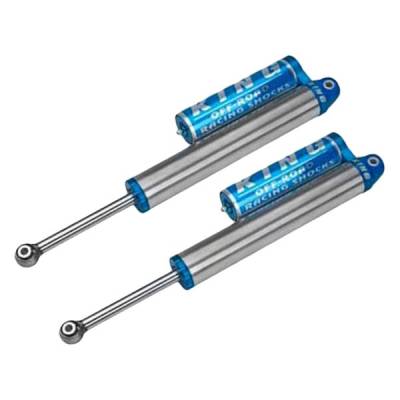

Shocks - OEM Replacement style bolt in 2.5 or 3.0 shocks will fit this kit. For Maximum travel use our Custom built King 2.5" shock (options above)
Tire Size - 35" or 37"
Wheel Size - 17" rim with 4.75" max backspacing
Fenders - Fiberglass fenders needed for 35" tires seeing offroad use and for all application with 37" tires.

**ATTENTION** You may run 35" tires with stock fenders for mild use ONLY. 35" tires will clear under normal driving conditions and WILL contact your stock fender at full compression (AKA jumping the truck, hitting bumps or driveways at speed) The owner accepts the risk of damaging the stock fenders in this scenario.

Parts Included:
**Kits come pre assembled and ready for install, as seen in product photos**

Boxed Upper Arms
Baja Kits Badges & Rivets
Hi-Density Custom Bushings
Crush Sleeves
Zerk fittings
1" Uniballs
Countersunk Top Misaligns & 12 point bolts
Heat Treated Tapered Misalign Adapters

Boxed Lower Arms
Baja Kits Badges & Rivets
Hi-Density Custom Bushings
Crush Sleeves
Zerk fittings
1" Uniballs
Countersunk Top Misaligns & 12 point bolts
Heat Treated Tapered Misalign Adapters

Additional Items
Brakelines, Fittings,Adapters and Copper Washers
CNC Steel Steering Extensions
Coil Bucket Shock Adaptor (Only included with the custom built King 2.5" shock)
Install Guide
Baja Kits Sticker pack

Install Information:
Level 2 Install, Bolt on with drilling &/or minimal grinding
Install Time: 8 hours (Times will vary depending on knowledge and skill level)
