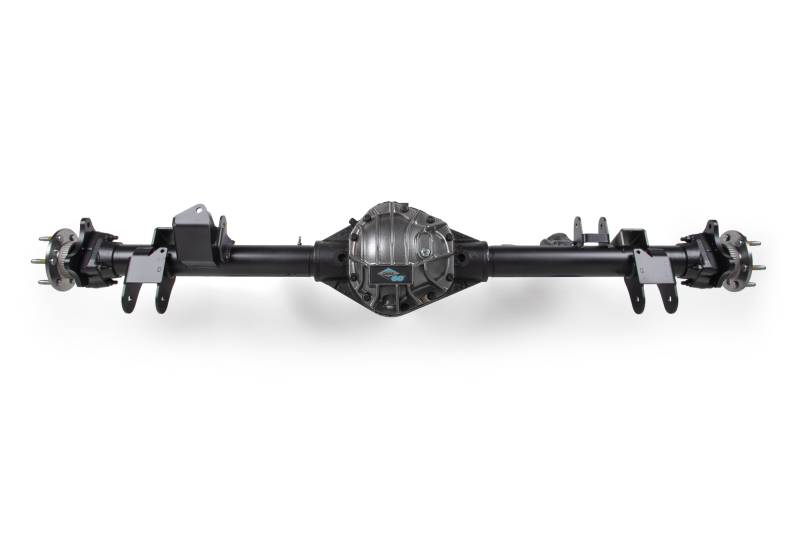

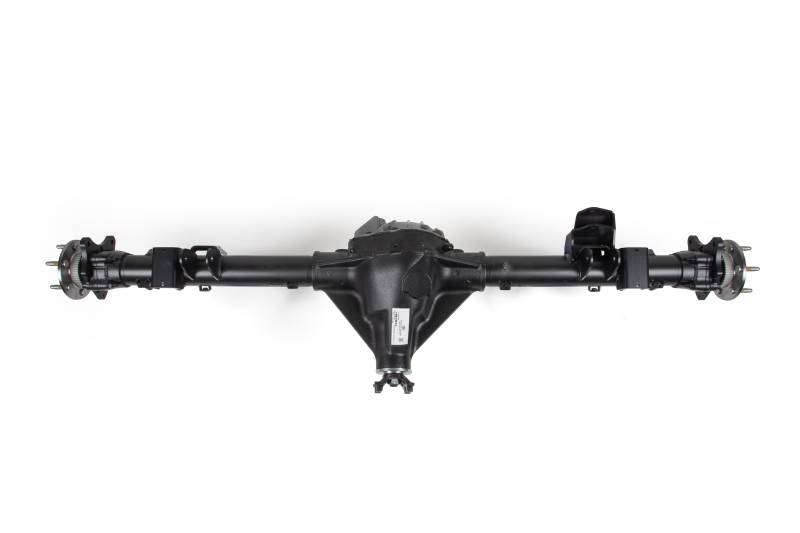

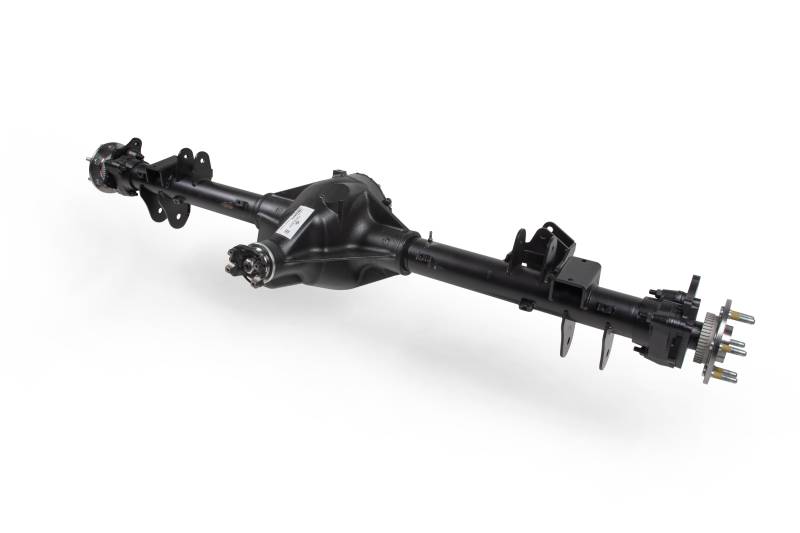

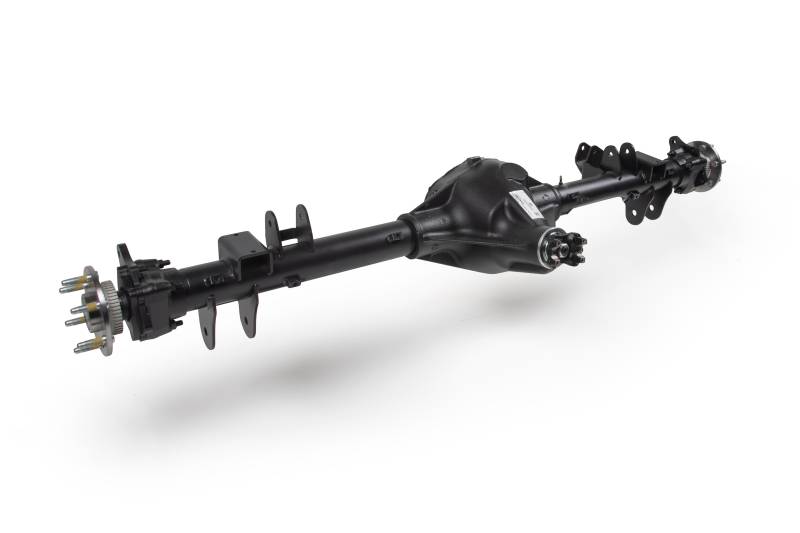

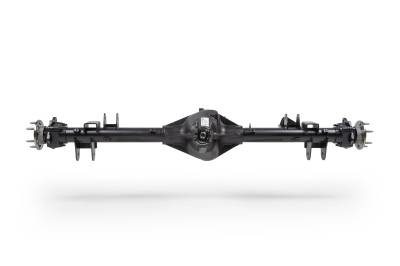

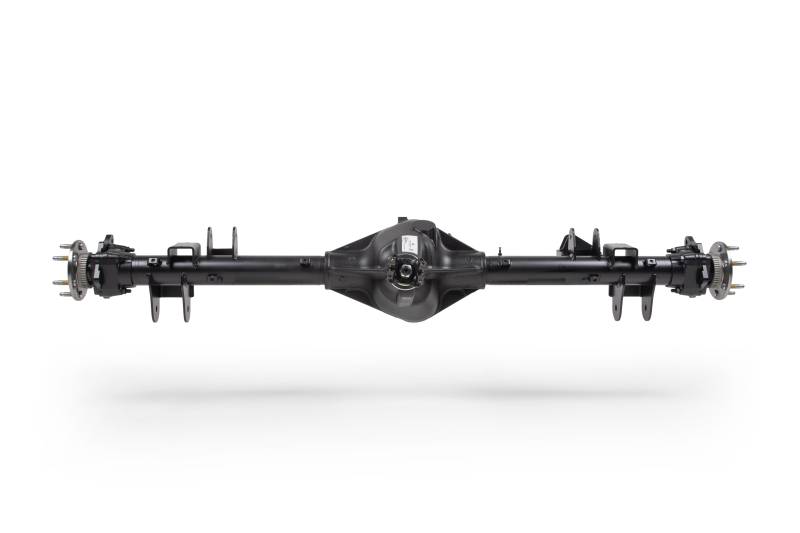

Dana 60 | Rear Prerunner Axle Assembly | 3" Over Stock | 3:73 | 19-26 Chevy Silverado | GMC Sierra 1500 4WD

(0) Reviews: Write first review
DANA10515329
  • Massive Strength: Semi-float design with 3.5” OD x .390” wall steel axle tubes and .250” brackets for a 5-link trailing arm
  • Long Travel Match: +3" over stock width to match Baja Kits LT1 front suspension, adaptable to many linked rear suspension setups
  • Premium Components: Spicer® 35-spline chromoly axle shafts, Spicer® 3.73 gears, and ARB Air Locker for selectable traction
  • Durable Protection: Heavy-duty nodular iron differential cover, powdercoated finish, and designed to accept factory GM1500 rear brake assembly
  • USA-Built Quality: Sourced and assembled in the USA with a Race It or Chase It limited lifetime warranty
Availability: Rear
Shipping: In-Stock & Ready to Ship
Pricing: $8,999.95

Qty:

Description

Upgrade the rear of your 2019+ Chevy Silverado or GMC Sierra 1500 with the Ultimate Dana 60 Prerunner Rear Axle. Designed as a direct bolt-in match for Baja Kits LT1 +3" long travel suspension, this axle delivers the strength, durability, and track width to complement high-performance front suspension setups. Built for serious off-road use, it features full-width semi-float construction, 3.5” OD x .390” wall steel axle tubes with heavy-duty 5-link brackets, and Spicer® 35-spline chromoly shafts for maximum torque capacity. A nodular iron differential cover protects Spicer® 3.73 gears and an ARB Air Locker, giving you selectable traction from limited slip to full lock at the push of a button. Ready to accept your factory GM1500 rear brake assembly for simple installation, this axle is sourced and assembled in the USA for uncompromising quality and reliability.

Specs:

Fitment:

  • 2019–2025 Chevy Silverado 1500 / GMC Sierra 1500 (+3" long travel suspension)

  • Direct bolt-in for Baja Kits LT1 suspension

  • Adaptable to many other linked rear suspension setups

Type:

  • Rear Prerunner Axle Assembly (Ultimate Dana 60)

  • Full-width, semi-float design (~76” WMS-WMS)

Construction:

  • 3.5” OD x .390” wall steel axle tubes

  • .250” steel brackets for 5-link trailing arm

  • Spicer® 35-spline chromoly axle shafts

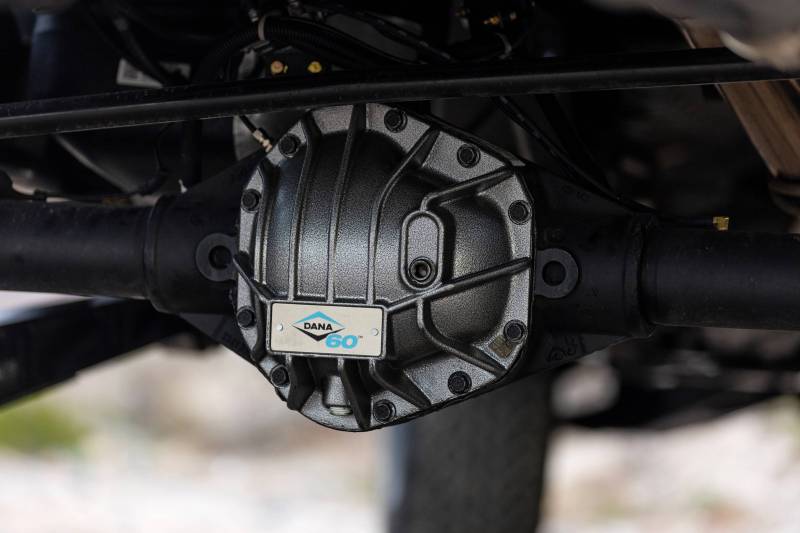

  • Heavy-duty nodular iron differential cover

Design Features:

  • Spicer® 3.73 ring & pinion gears

  • ARB Air Locker (selectable limited slip to fully locked)

  • Matches +3” front track width on long travel-equipped GM1500 trucks

  • Spicer® 1350 strap-style/half-round end yoke

  • Designed to accept factory GM1500 rear brake assembly

Finish & Protection:

  • Powdercoated for durability in harsh conditions

  • Heavy-duty nodular iron differential cover

Performance Ratings:

  • High torque capacity for extreme off-road use

Warranty:

  • Race It or Chase It limited lifetime warranty

  • Sourced and assembled in the USA

Warranty

Baja Kits Chase it or Race it Warranty
Whether you are driving to work, or you are blasting across the desert, racing your buddies, or chasing the pro’s, you are covered by our warranty. The breakdown of the warranty is below.

Lifetime warranty on all components and fabricated products
All our Baja Kits products are designed to handle serious abuse on-road and off. Because of that, we offer a lifetime warranty on all components and fabricated products. You didn’t buy the best to baby it, play hard, we have your back!

All bushings, uni-balls, and Heim’s are 12 month warranty
Racecar parts make racecar noises. You have bought some serious hardware, bred in racing and developed for dual-purpose street and play. Hearing a squeak might not be an indication of a worn product. That can simply be an indication of a dry joint. Movement and “play” are the key indicators for a worn part. Our tech team is standing by to help answer the question, educate on maintenance and operation, and take care of you if parts are needed.

Product finish is a 12-month warranty
It must look as good as it performs. We take pride in building quality products and making sure their finish reflects the time and effort it took to create them. Because of this, we offer a 12-month warranty on the finish of all our products based on workmanship. Damage caused by use and abuse is appreciated and approved, but we cannot cover it on warranty.
