2019+ Silverado/Sierra 1500 Bypass Rack

C10BR19

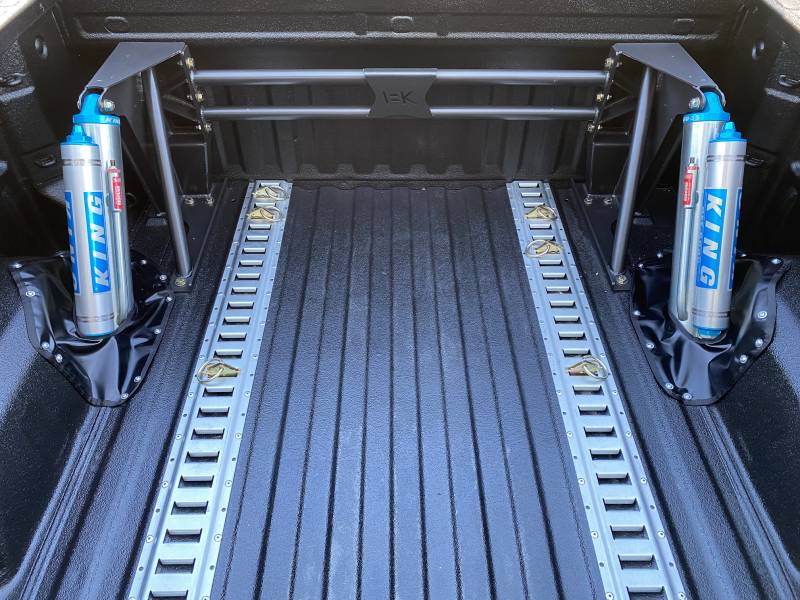

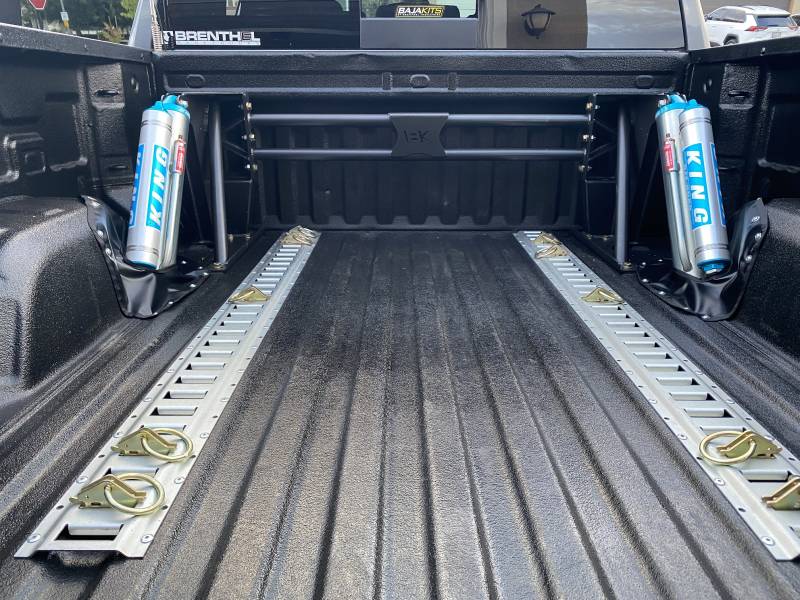

The all new 2019+ Silverado is the best offroad platform yet! You have a nice truck, so keep it clean and functional with a low profile bypass rack design that is daily driver friendly. Our Baja Kits Rear Bypass Rack is the perfect compliment to our front Prerunner Suspension Kit significantly improving offroad performance in the dirt while retaining excellent on-road handling and comfort.Aside from extreme handling offroad this kits leaves you with nearly full use of your bed space! (an industry first for Chevy Bypass rack options) Heavy duty fabricated rear shock mounts and bolt in cross bar handle the abuse while King bypass shocks with piggy back reservoirs control the damping of the rearend with a simple install and rack that can be unbolted any time.
Shipping: Contact 949-566-8609 for Shipping Quotes
Pricing: $1,699.00

Customize Your Item

Bypass Rack Option *
Qty:

Description

The Baja Kits Advantage:

- Modern Low Profile Plate design with strategic tube placement for ultimate strength, Sleek look and maximized usable bedspace
- Designed to be used with spring over M27 Leaf spring pack, our lower shock mount Bolts to
- Load Dirt Bike, Bicycles, Camping gear with ease.
- Kit was optimized for a 3.5" 5 tube bypass for top performance and adjustability
- Removable center Cross bar gives you the freedom to customize your bed and make configurable bolt in additions for your needs
- Self Locating frame mounts only require light welding and everything above the bed is Bolt on which can be removed at any time
- Provided Bed Gap Covers make sure Dust doesnt enter through the bed cago area from underneath and keeps loose items from falling though the gap for a clean and functional look

Technical Specs:

- Track Width - Remains stock unless you add a rear end or wheels spacers
- Lift - When used with a Deaver M27 Pack lift and our Shackle will be 1-2" depending on your model.

Product Requirements:

3.0x16 3 tube- Bypass Option 1
3.5x16 5 tube - Bypass Option 2 (Recommended)

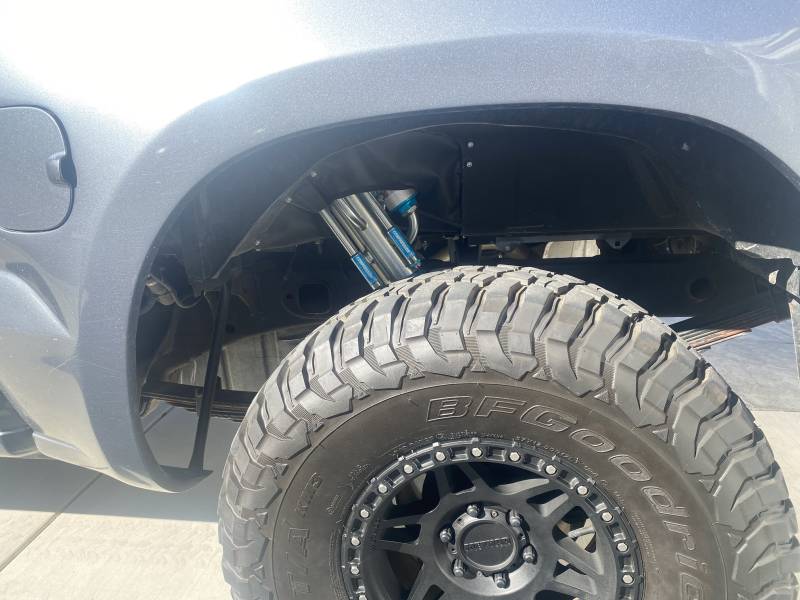

- Tire Size - 35" or 37"
- Wheel Size - 17" rim with 4.75" max backspacing
- Fenders - Fiberglass bedsides needed for 37" tires seeing offroad use
**ATTENTION** You may run 37" tires with stock fenders for mild use ONLY. 37" tires will clear under normal driving conditions and WILL contact your stock fender at full compression (AKA jumping the truck, hitting bumps or driveways at speed) The owner accepts the risk of damaging the stock fenders in this scenario.

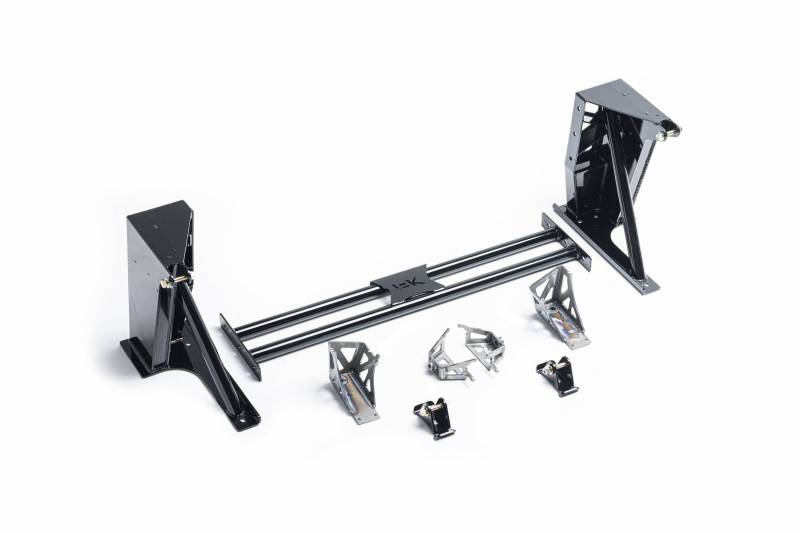

Parts Included:

- Quick Weld mounts - simple self locating brackets weld to your frame, 2 each side
- Bolt in Shock Tower Weldments
- Bolt in Cross Support Tube
- Shock Gap Cover

Additional Items:

- Hardware
- Install Guide
- Baja Kits Sticker pack

Install Information:

Level 2 Install, Bolt on with drilling/ Cutting and Light Welding
Install Time: 8 hours (Times will vary depending on knowledge and skill level)
