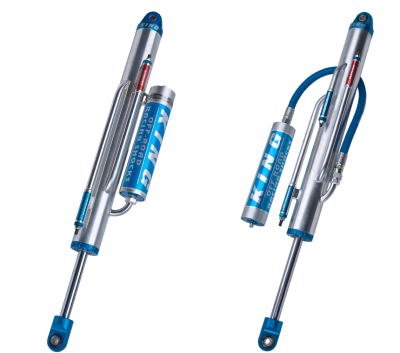

Baja Kits Bolt on Long travel suspension is just that a bolt on 6" total wider track width making for more wheel travel, increase on and off road capability, ground clearance, larger tires and shocks. This kit is made to fit perfectly on your Ranger by replacing the stock rubber bushings and ball joints with Hi Density Bushings and Uniballs, the strength and handling qualities are substantially increased. We also increase the caster angle to get rid of the loose front end feeling that often occurs with mid to long travel suspension kits. This kit is designed to be paired with 2.5 coil overs and optional 2.5 bypass shocks which can be installed upon initial install or later down the road (Bypass mounts will require welding) * Limit Strap Hardware Not Included
The Baja Kits Advantage:
- CAD designed boxed UCA and LCA
- Hi Density Bushings with grease fittings for industry leading durability and a quiet, no squeak ride
- 1" Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
Technical Specs:
- Track Width - +3" Wider on each side (6" wider total)
- Wheel Travel - 11.5"
- Lift - 3 - 4"
Product Requirements:
- Shocks - Aftermarket Bolt in Coilovers
- Tire Size - 33" or 35"
- Wheel Size - 17" rim with 4.75" max backspacing
- Fenders - Fiberglass fenders needed for 33" tires seeing offroad use and for all application with 35" tires.
**ATTENTION** You may run 33" tires with stock fenders for mild use ONLY. 33" tires will clear under normal driving conditions and WILL contact your stock fender at full compression (AKA jumping the truck, hitting bumps or driveways at speed) The owner accepts the risk of damaging the stock fenders in this scenario.
Parts Included:
**Kits come pre assembled and ready for install, as seen in product photos**
Boxed Upper Arms
- Baja Kits Badges & Rivets
- Delrin Bushings
- 4130 Crush Sleeves
- Zerk fittings
- 1" uniballs
- Countersunk Top Misaligns & 12 point bolts
- Tapered Misalign Adapters
Boxed Lower Arms
- Baja Kits Badges & Rivets
- Delrin Bushings
- Crush Sleeves
- Zerk fittings
- 1" Uniballs
- Countersunk Top Misaligns & 12 point bolts
- Tapered Misalign Adapters
- Shock Bolts and Nuts
Additional Items
- Brakelines, Fittings,Adapters and Copper Washers
- CNC Steering Extensions
- Extended Heat Treated Axles (See Axle install guide)
- Install Guide
- Baja Kits Sticker pack
Install Information:
"Level 2 Install, Bolt on with drilling &/or minimal grinding "
Install Time: 8 hours (Times will vary depending on knowledge and skill level)
