The Baja Kits Advantage:
- CAD designed Billet UCA and Boxed LCA
- Trophy Truck grade Delrin bushings with grease fittings for industry leading durabilty and a quiet, no squeak ride
- 1" Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
Technical Specs:
- Track Width - +3" Wider on each side (6" wider total)
- Wheel Travel - 13"
- Lift - 3 - 4"
Product Requirements:
- Shocks - Aftermarket Bolt in King or Fox Shock
- Tire Size - 35" or 37"
- Wheel Size - 17" rim with 4.75" max backspacing
- Fenders - Fiberglass Fenders recommended
Parts Included:
**Kits come pre assembled and ready for install, as seen in product photos**

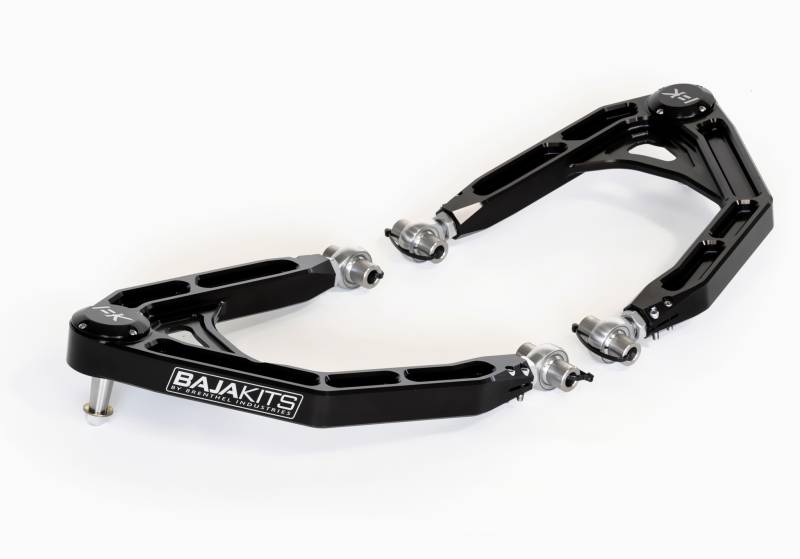

Billet Upper Arms
- Billet Aluminum Arm Anodized with laser etched logo
- 3/4 Adjustable rod ends on the inner pivots
- Trophy Truck Grade 1" uniballs
- Heat Treat Stainless Steel Countersunk Top Misaligns & 12 point bolts
- Heat Treat Stainless Steel Tapered Misalign Adapters

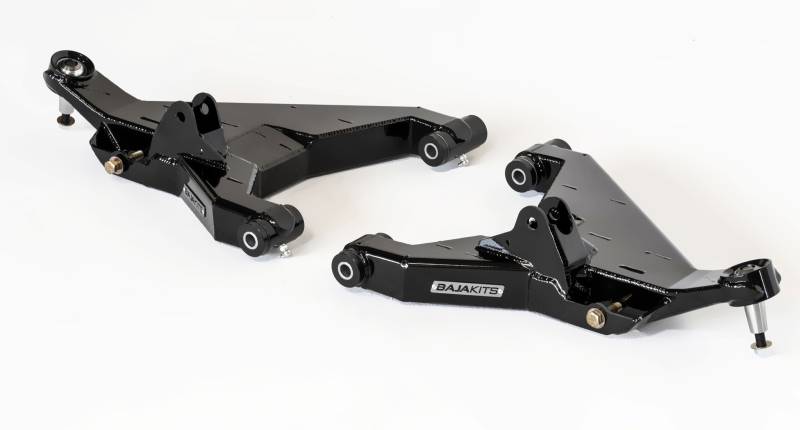

Boxed Lower Arms
- Baja Kits Badges & Rivets
- Delrin Bushings
- Crush Sleeves
- Zerk fittings
- 1" Uniballs
- Heat Treat Stainless Steel Countersunk Top Misaligns & 12 point bolts
- Heat Treat Stainless Steel Tapered Misalign Adapters
- Shock Bolts and Nuts
Additional Items
- Brakelines, Fittings,Adapters and Copper Washers
- CNC Steering Extensions
- Link to Video install guide
- Baja Kits Sticker pack
Install Information:
"Level 2 Install, Bolt on with drilling &/or minimal grinding "
Install Time: 8 hours (Times will vary depending on knowledge and skill level)
NOTES: TRD PRO will need Part #BJK8108002 ( Front Sway Bar Links ) to retain Factory Sway Bar
