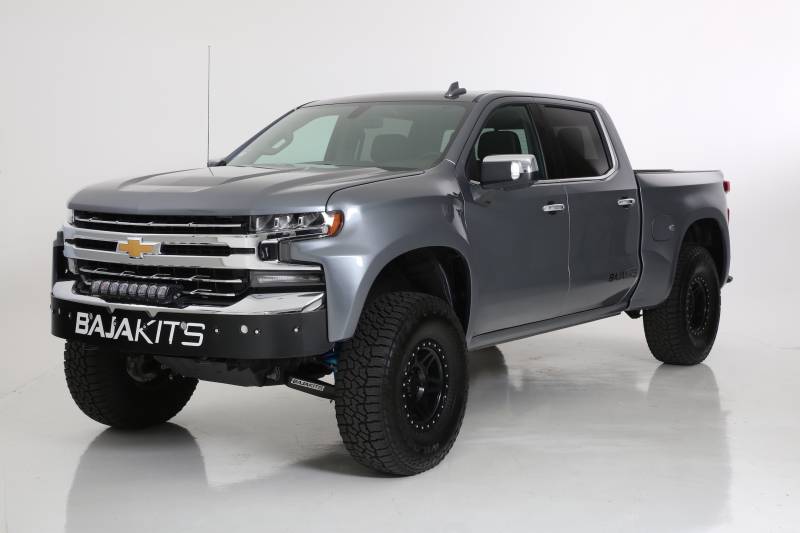

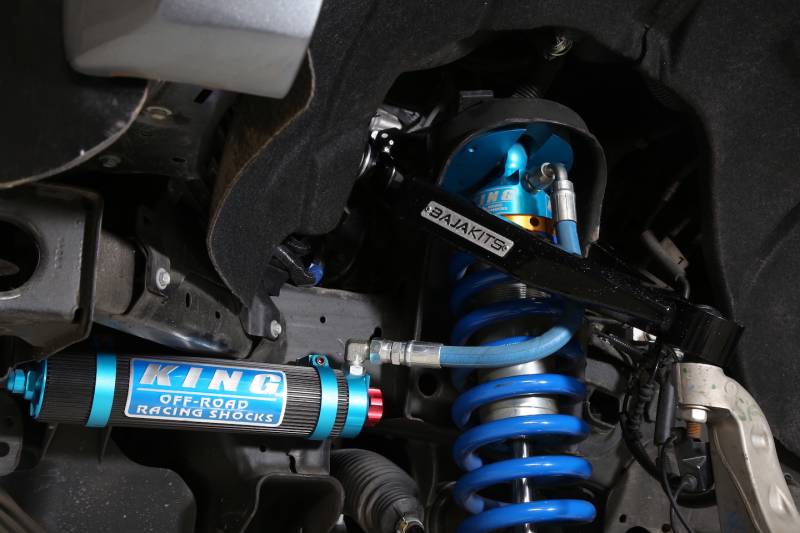

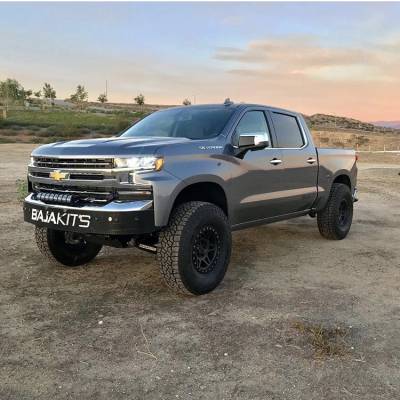

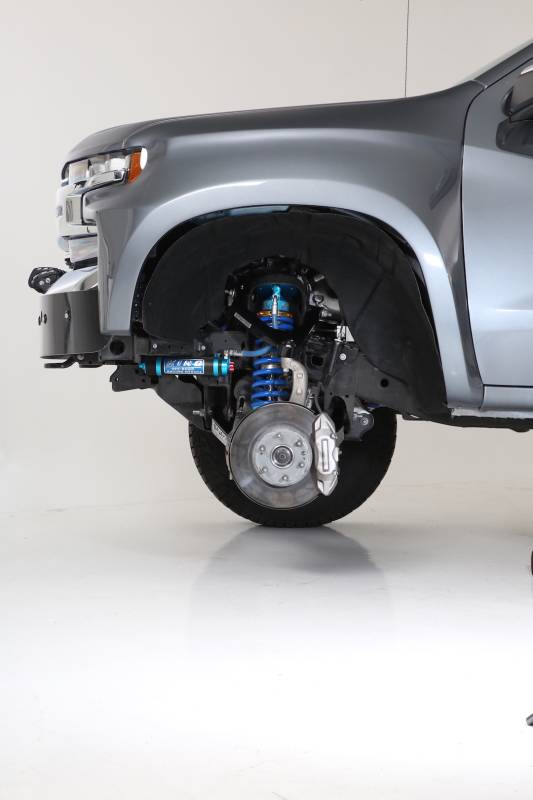

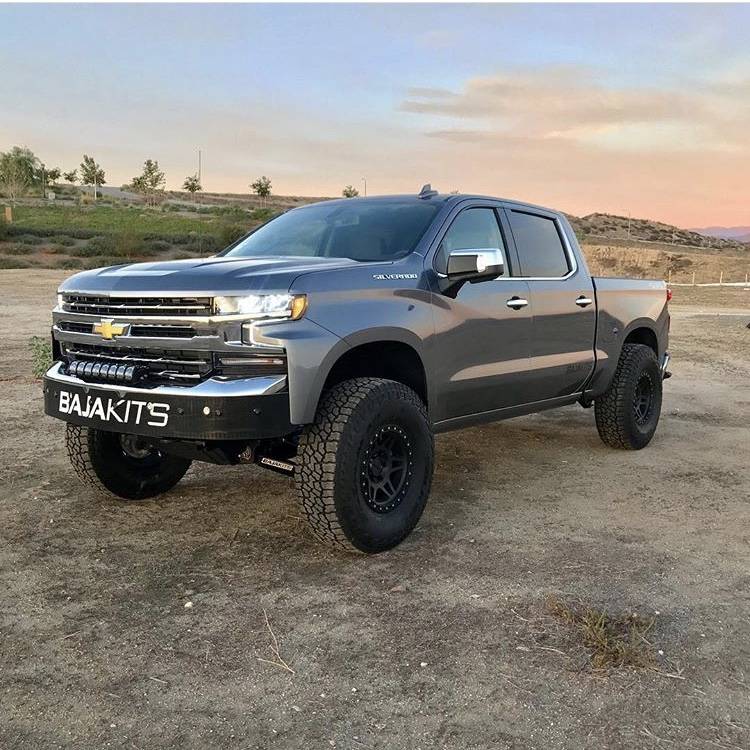

The all new 2019 Silverado is the best offroad platform yet! Our Baja Kits Prerunner Suspension Kit significantly improves offroad performance in the dirt while retaining excellent on-road handling and comfort with optional sway bar mount. The kit is a direct bolt-on to your 4WD Chevy Silverado and uses a readily available bolt in shock thats on the shelf at all dealers and install shops world wide. Engineered to be a complete bolt on long travel travel suspension system, it uses Trophy Truck grade uniballs and hardware on both the Upper and Lower arms. Heavy duty fabricated steel arms handle the abuse while King coilover shocks with remote reservoirs and compression adjusters for precise tuning handle suspension damping. bypass shock option also coming soon. (Rear kits available too).
The Baja Kits Advantage:

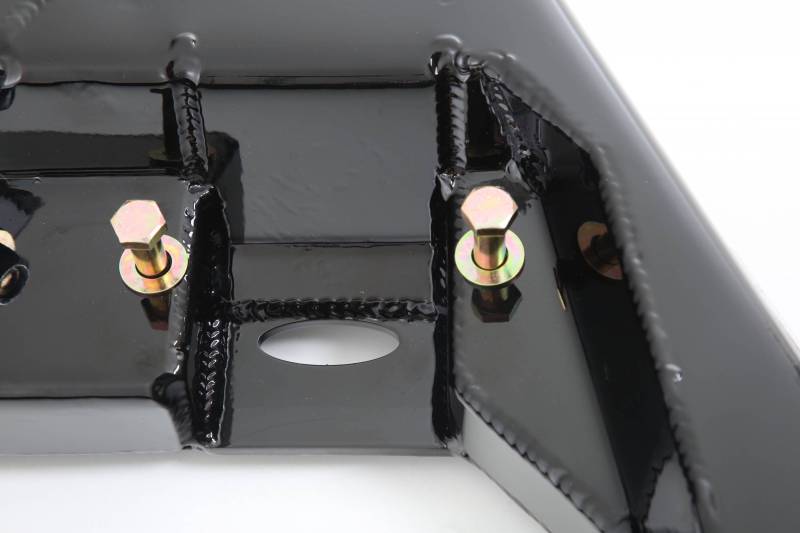

- CAD designed boxed UCA
- Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durabilty and a quiet, no squeak ride
- 1" Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
- Easy Install, NO welding, able to be put back to stock.
Technical Specs:
Track Width - Over 3" wider per side (6" wider total)

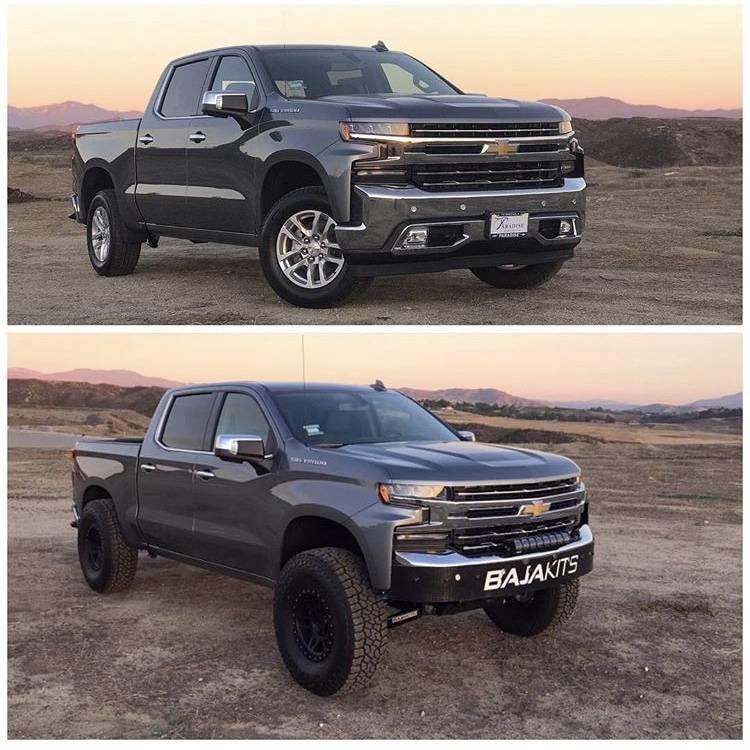

Lift - 3 - 4"
Product Requirements:
-
Shocks - After market bolt in 2.5 or 3.0 shocks (King or Fox)
-

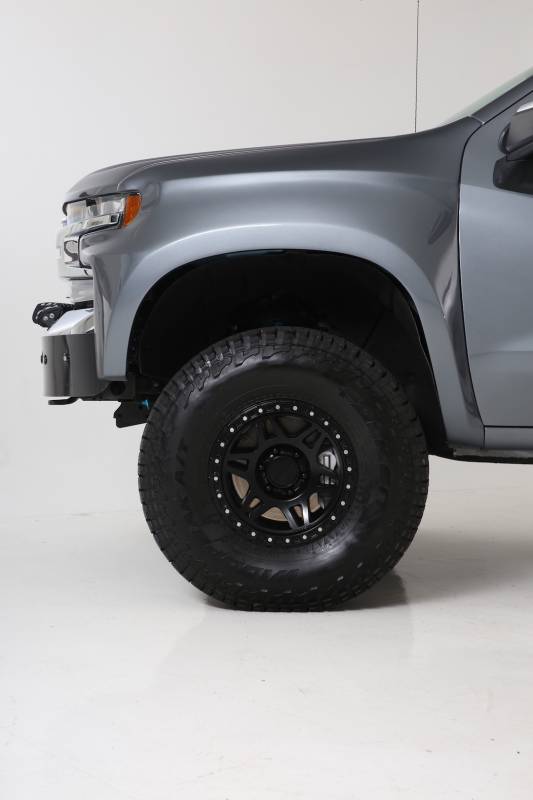

Tire Size - 35" or 37"
-
Wheel Size - 17" rim with 4.75" max backspacing
-
Fenders - Fiberglass fenders needed for 37" tires seeing offroad use
-
Sway Bar Links - BJK1108001 is needed to reuse your factory Sway Bar
Stage 1:
- Aftermarket Shock
- Stock Fenders w/minor trimming
- 35 inch Tires
Stage 2:
- Aftermarket Shock
- Fiberglass fenders
- 37 inch tires
Stage 3:
- Aftermarket Shock & 3.0 bypass
- Fiberglass fenders
- 37 inch tires
**ATTENTION** You may run 37" tires with stock fenders for mild use ONLY. 37" tires will clear under normal driving conditions and WILL contact your stock fender at full compression (AKA jumping the truck, hitting bumps or driveways at speed) The owner accepts the risk of damaging the stock fenders in this scenario.

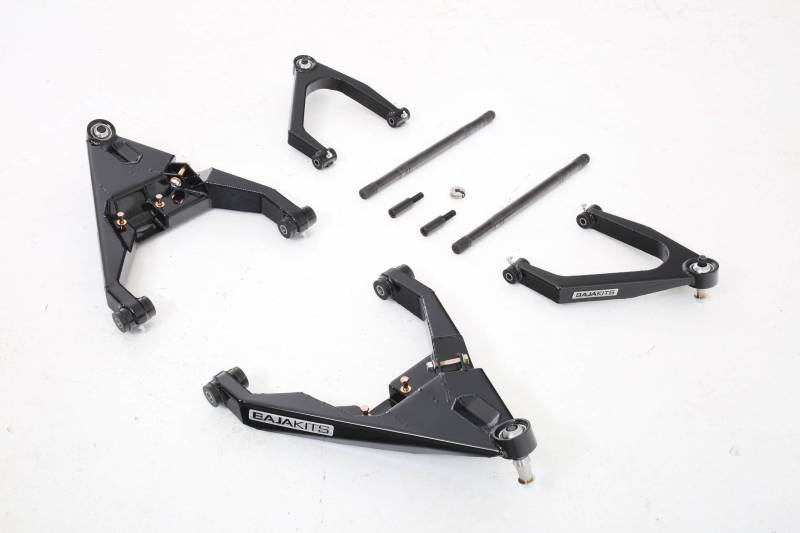

Parts Included:

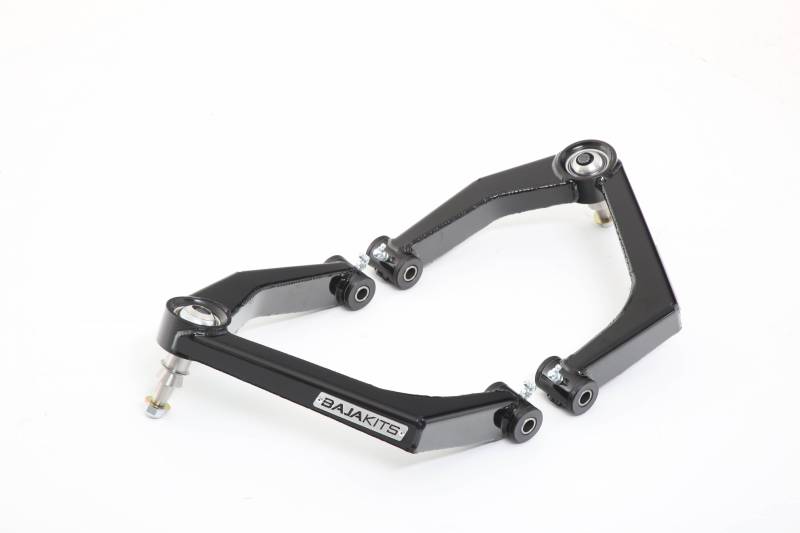

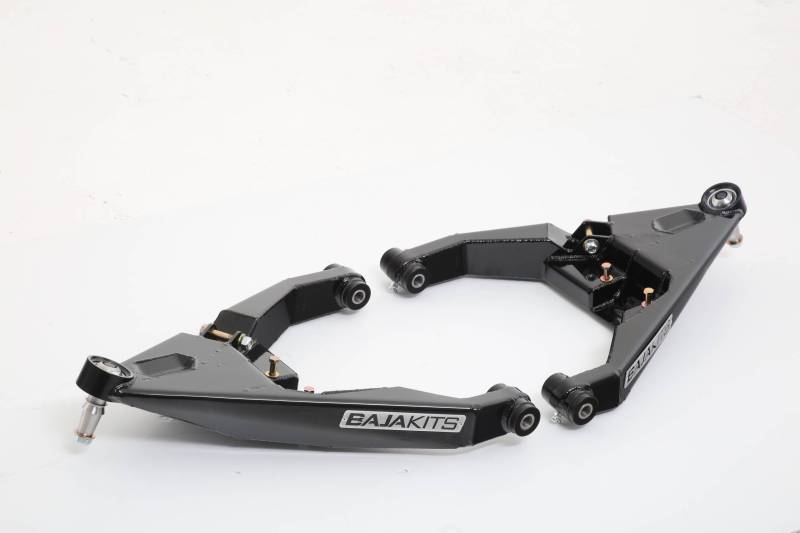

Boxed Upper Arms:
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" uniballs
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters
Boxed Lower Arms :
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" Uniballs
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters
Additional Items :
- CNC Steel Steering Extensions
- Install Guide
- Baja Kits Sticker pack
- Extended Axles, high strength steel & Heat Treated
Install Information:
- Level 2 Install, Bolt on with drilling &/or minimal grinding
- Install Time: 8 hours (Times will vary depending on knowledge and skill level)
Reviewed by: Jason08/03/2023 06:00PM
Product ownership: Less than 1 month
Purchased from: Baja Kits
Comments:

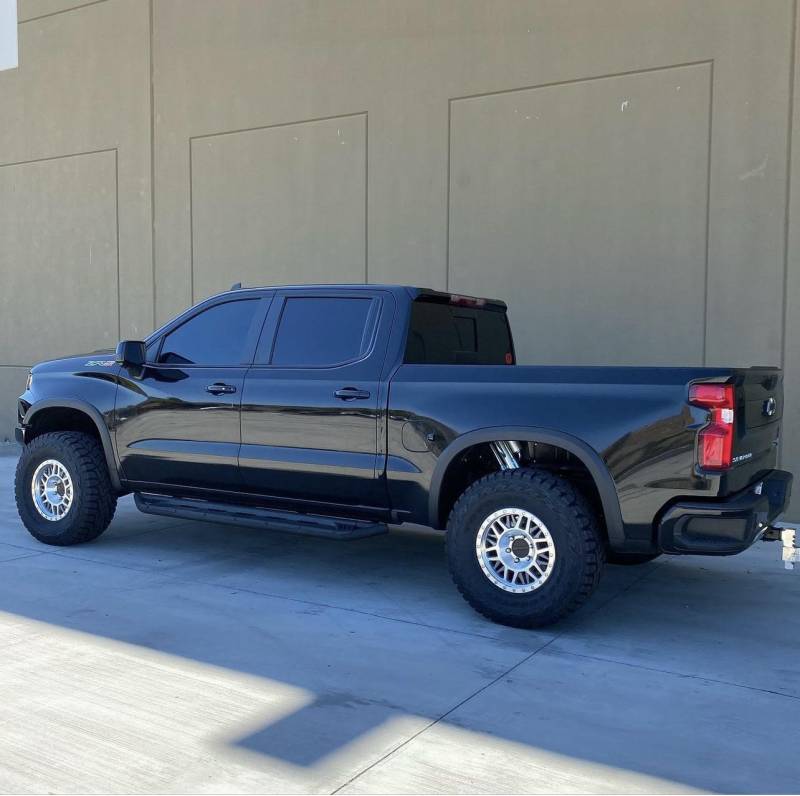

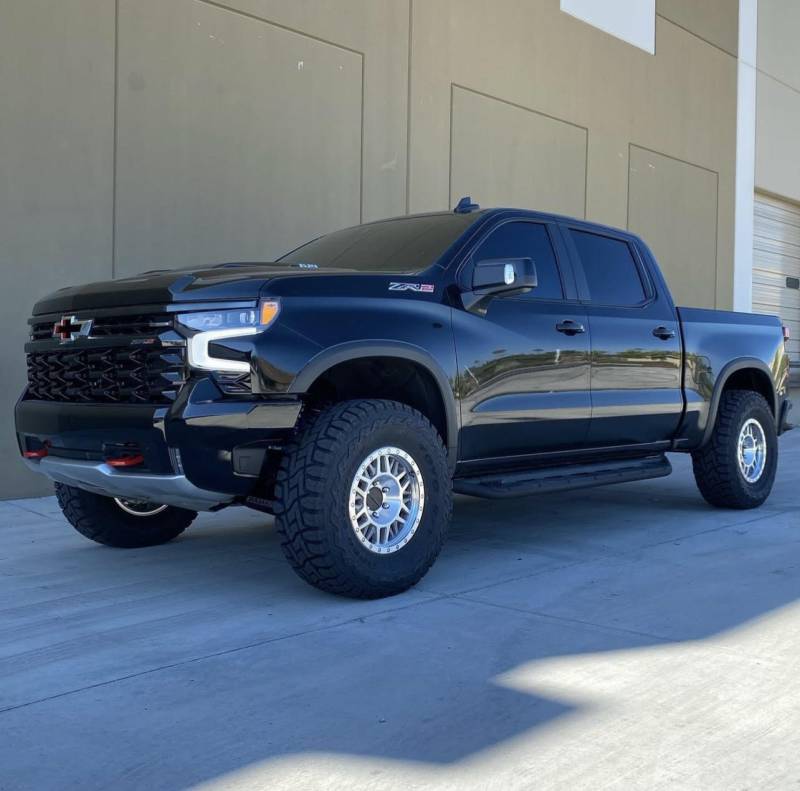

Installed on 2023 ZR2 easy straight forward fitting no issues
