2.5 Prerunner Kit | 2015+ Chevy Colorado 4WD

BJK132002
Availability: Front
Shipping: Shipping Pricing for Hawaii and Alaska Please Call
Pricing: $3,699.00
5 5 1

Customize Your Item

Select Shock Option
Qty:

Description

Description:

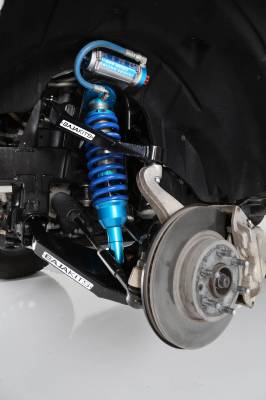

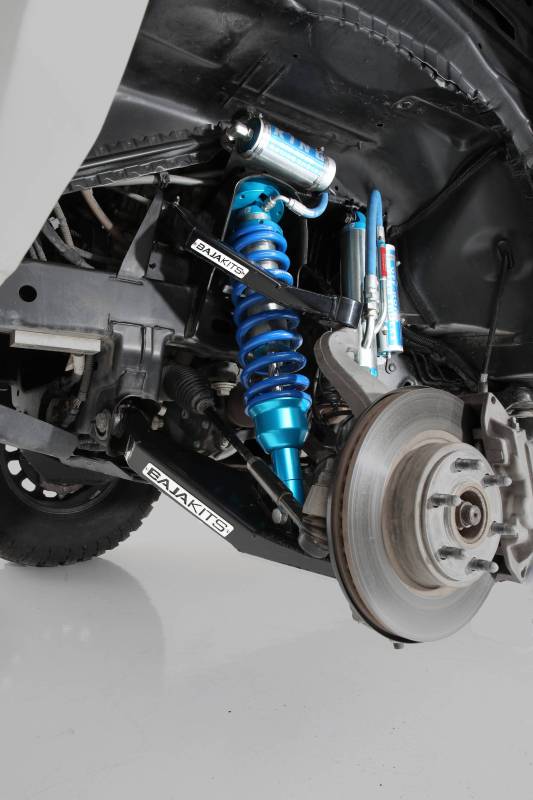

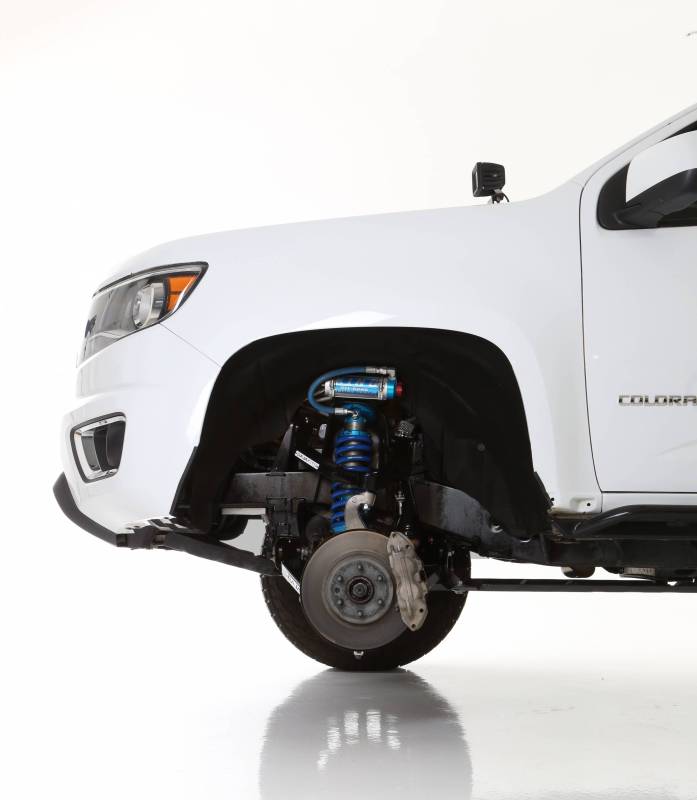

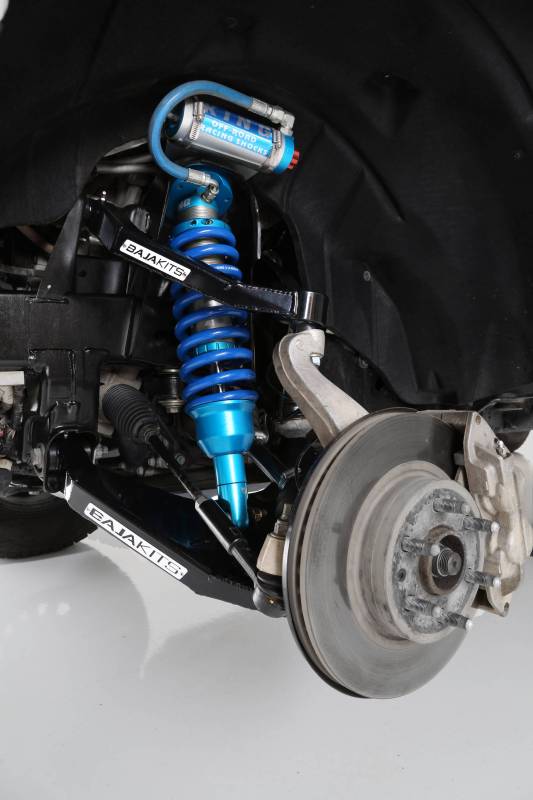

The Baja Kits Colorado Prerunner Suspension Kit was designed to give the newest Chevrolet Truck the same aftermarket offroad suspension performance that other mini trucks have had for years. It excels in the dirt while retaining excellent on-road handling and comfort. The kit is a direct bolt-on to your 4WD Chevy Colorado. Engineered to be a complete suspension system, it uses Trophy Truck grade uniballs and hardware on both the Upper and Lower arms. Heavy duty fabricated steel arms handle the abuse while custom tuned King coil over shocks with remote reservoirs and compression adjusters for precise tuning handle suspension damping. This kit is an easy upgrade kit as it will work with your stock replacement aftermarket shock or our custom length shock for maximum wheel travel. A 2.5 Bypass is an option that can be added upon initial install or later on. (Rear kits available too).


The Baja Kits Advantage:
- CAD designed boxed UCA and LCA
- Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durabilty and a quiet, no squeak ride.
- 1" Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use.
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease.
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment.
- Ability to pair with bypass shock or OEM length King Shock as well as Baja Kits custom king shock

Technical Specs:
Track Width - 2.5" wider per side (5" wider total) 1” wider per side on a ZR2 ( 2” wider total )
Wheel Travel - 11"
Lift - 3-4"

Product Requirements:
Shocks - After market bolt in 2.5 shocks will fit this kit. For Maximum travel use our Custom built King 2.5" shock (options above)

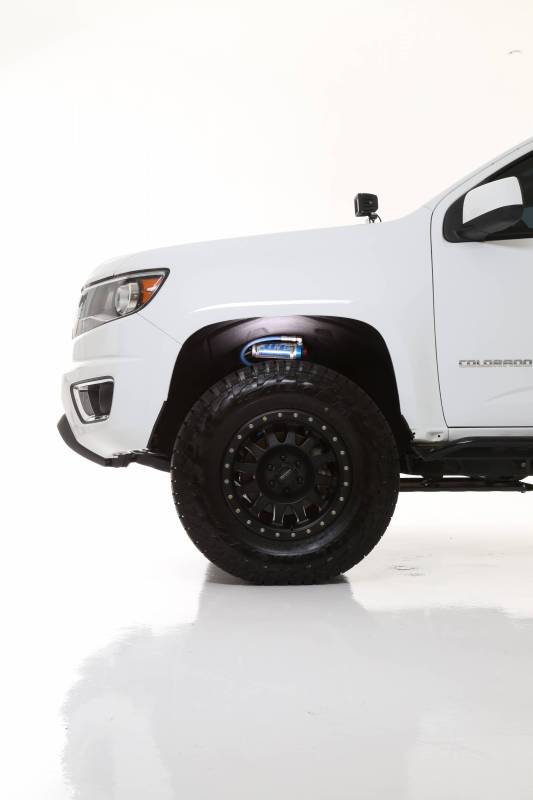

Tire Size - 33" Standard, 35" maximum with significant trimming
Wheel Size - 17" rim with 4.75" max backspacing
Fenders - Minor trimming required for any tire size over stock
Stage 1:
- OEM Aftermarket Shock
- Stock Fenders w/minor trimming
- 33 inch tires
Stage 2:
- Custom King 2.5" Shock
- Stock Fenders w/minor trimming
- 33 inch tires
Stage 3:
- Custom King 2.5" Shock w/2.5" Bypass
- Fiberglass fenders
- 33 inch tires (Recommended) OR 35 inch tires (Maximum)

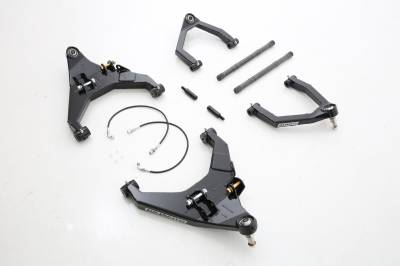

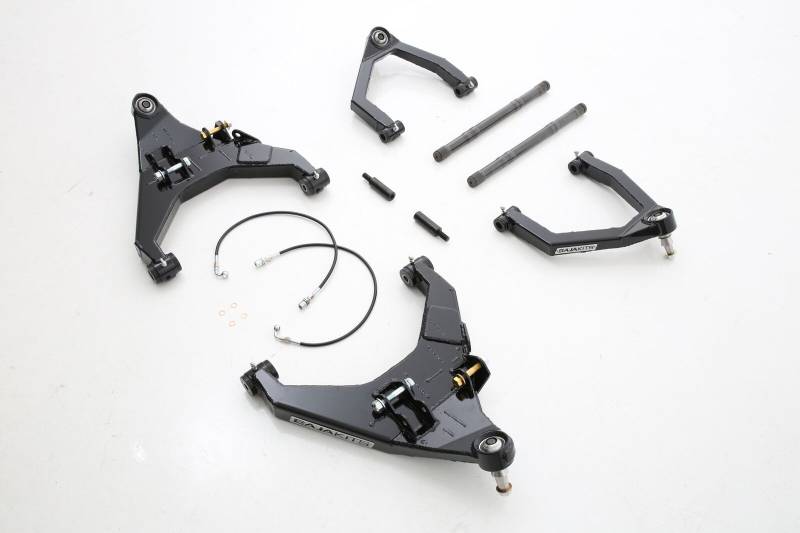

Parts Included:

**Kits come pre assembled and ready for install, as seen in product photos**

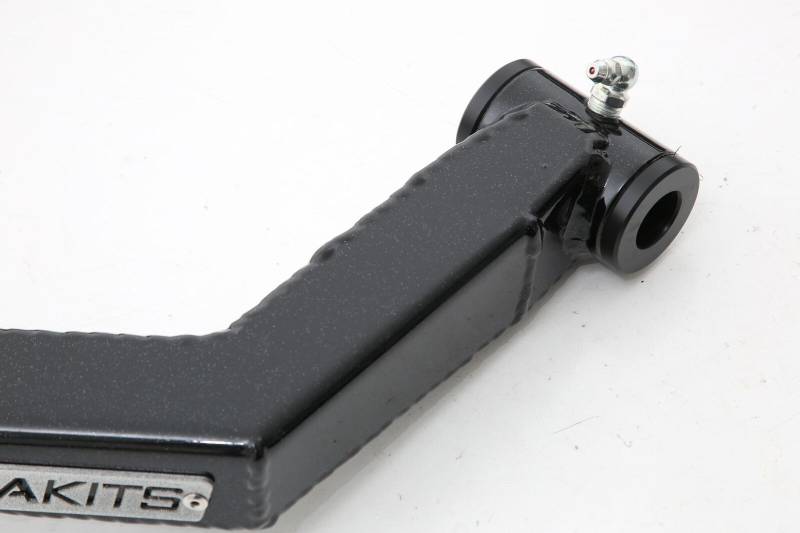

Boxed Upper Arms:
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" uniballs
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters

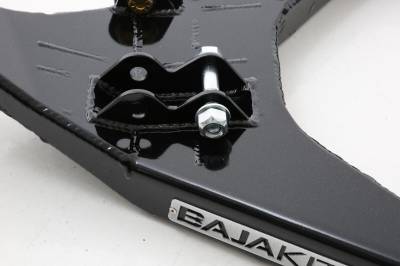

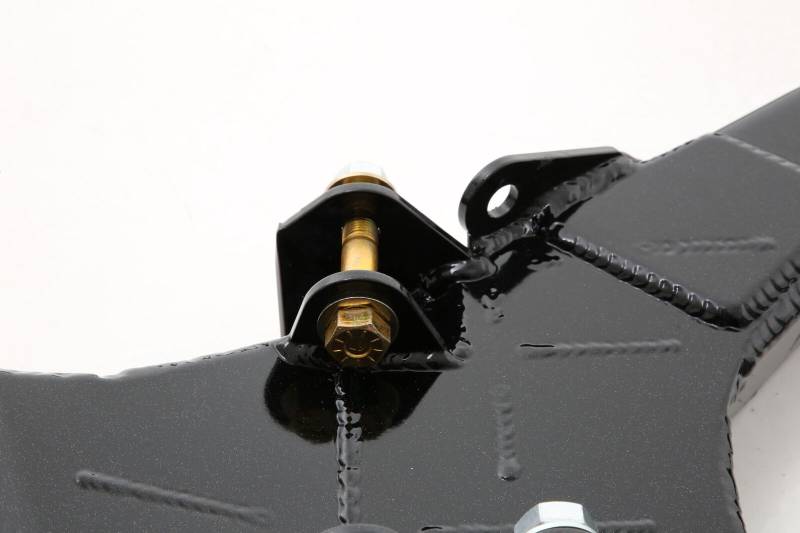

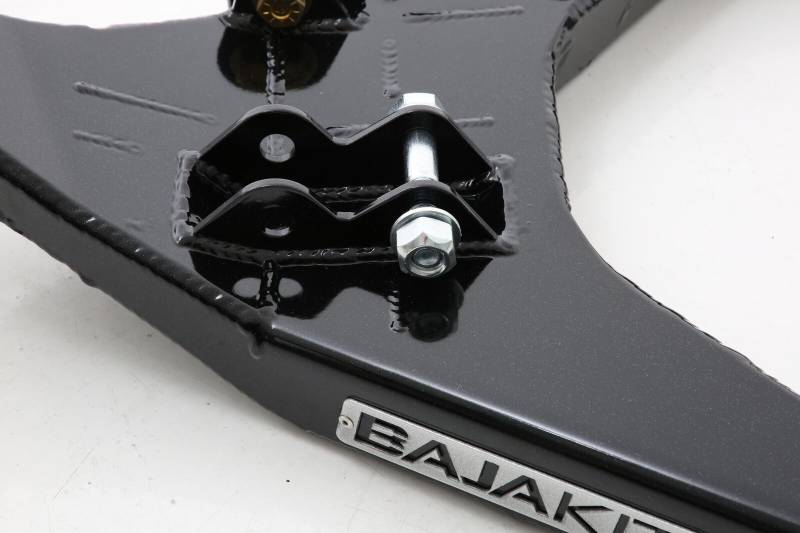

Boxed Lower Arms:
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1" Uniballs
- Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters

Additional Items
- Brakelines, Fittings,Adapters and Copper Washers
- CNC Steel Steering Extensions
- Install Guide
- Baja Kits Sticker pack
- Extended Axles, high strength steel & Heat Treated.


Install Information:
- Level 2 Install, Bolt on with drilling &/or minimal grinding.
- Install Time: 8 hours (Times will vary depending on knowledge and skill level).
